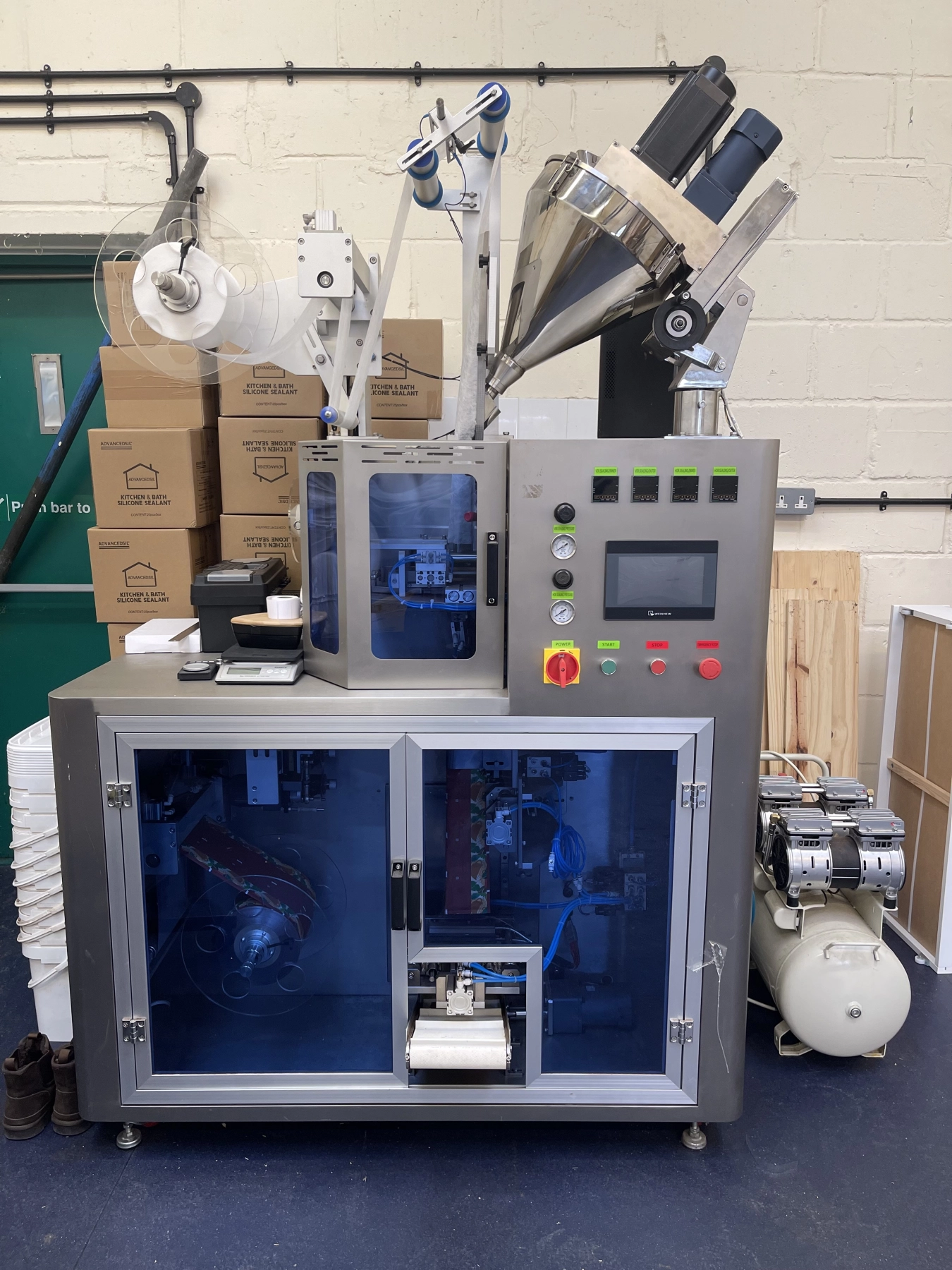

Commercial Coffee Bag Packing Machine – Drip & Tea-Bag Style( Like Taylor’s Coffee Bags)

Commercial automatic packaging machine designed to produce both drip coffee filter bags (hang-on cup style) and standard coffee bags similar to tea bags. The machine integrates inner bag forming, dosing, filling, sealing, cutting, and optional outer envelope packaging into one fully automated system.

Suitable for coffee roasters, private-label brands, and contract packers producing single-serve coffee formats for retail

Supported Bag Types • Drip coffee filter bags (hang-on cup brewing style) • Standard coffee bags (tea-bag–style sachets) • Inner filter bag only or inner bag + outer sealed envelope

⸻

Key Features • Fully automatic: bag forming, filling, sealing, cutting, counting • Ultrasonic sealing for inner coffee filter bags • Heat sealing for outer laminated packaging • Servo-driven inner bag system for precise bag length control • Photoelectric tracking for accurate outer bag positioning • Touch-screen HMI with adjustable parameters • Clean, consistent sealing with neat bag appearance • Compact industrial design for continuous production

⸻

Applications • Ground coffee powder • Other fine granular materials suitable for filter bags

⸻

Technical Specifications • Model: HiTec-DC • Sealing Type: 3-side sealing • Sealing Method: • Inner bag: Ultrasonic • Outer bag: Heat sealing • Production Speed: Approx. 10–40 bags per minute • Filling Range: 1–15 ml per bag (adjustable) • Inner Bag Size: • Length: 70 mm or 74 mm • Width: 90 mm • Outer Bag Size: • Length: 120 mm • Width: 100 mm • Power Supply: 220V / 50Hz / single phase • Total Power: 3.7 kW • Weight: Approx. 450 kg • Machine Dimensions: • 1422 × 780 × 2151 mm (L × W × H)
